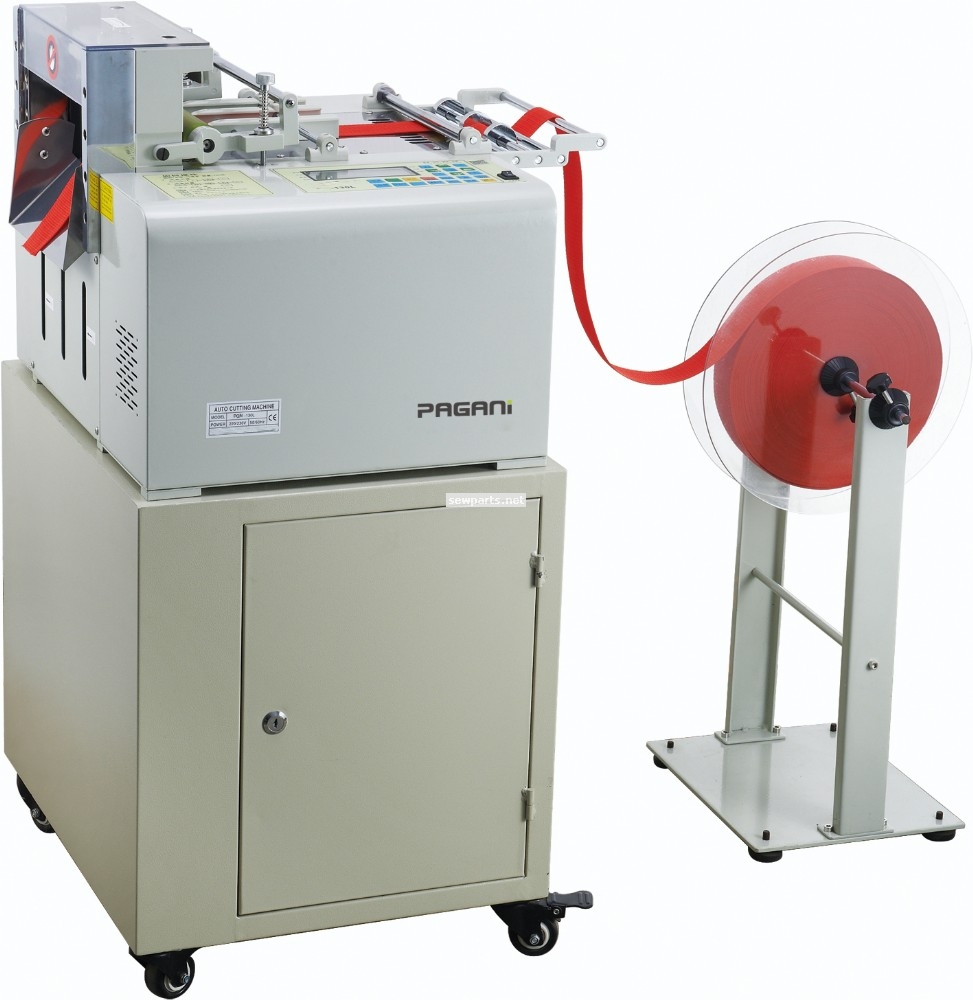

PGN-130L Heavy-duty Cold Knife Cutter

US $ 3775.86 / Piece
Price:
Pieces
Quantity:
US $3775.86
Total Cost:

Buyer Protection

-Guaranteed refunds
-Escrow protection on every order
-Secure payments
  • Item Description

Description

  • Product Name: PGN-130L Heavy-duty Cold Knife Cutter
  • Item Code:
  • Category:

    Automatic Cutting Machine

    To See this Categories
  • Brand:

    PAGANI

  • Product Area: China
  • Manufacturer:
  • Machine Model: PGN-130L
  • Viewed: 90




SPECIFICATIONS
MODEL CUTTING LENGTH
mm		 Max. CUTTING WIDTH
mm		 CUTTING SPEED
p/min		 WEIGHT
kg		 VOLTAGE FREOUENCY
V/Hz		 POWER
KW		 Max. BLADE TEMP
°C		 CUTTING ANGLE PACKAGE SIZE
(L.W.H)mm		 LOADING RATE
PIC
PGN-130L 1-99999 200 80~100 95/75 110V/220V
50/60		 0.5 - - 650×590×540 1
STAND PACKAGE SIZE
(L.W.H)mm		 WEIGHT
kg		 LOADING RATE
PIC
550×445×465 17 1




You can cut strip tapes automatically and neatly.

Special features:
High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

Apllication
Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.

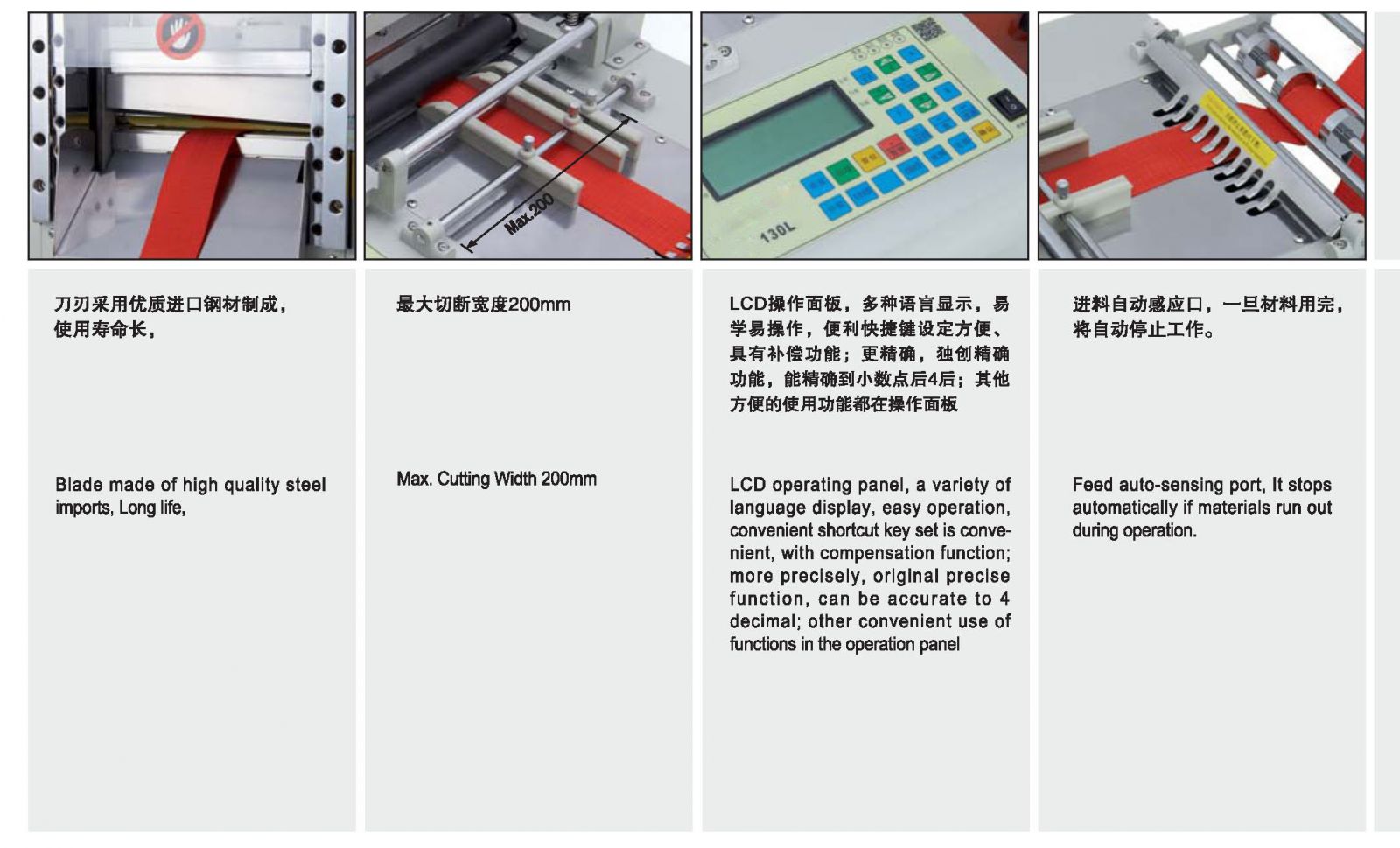

PRODUCT ILLUSTRATIONS
