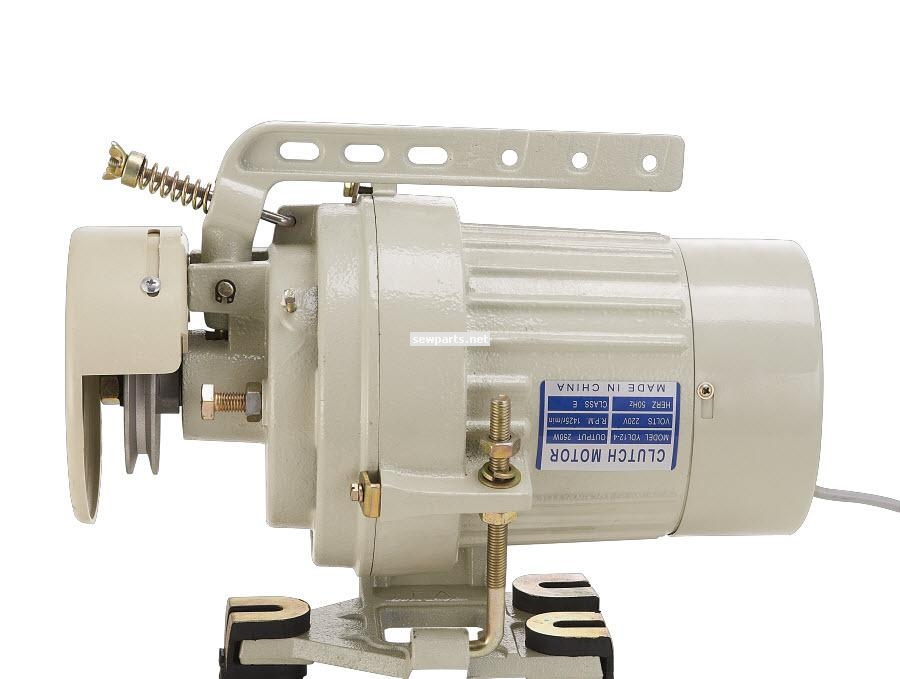

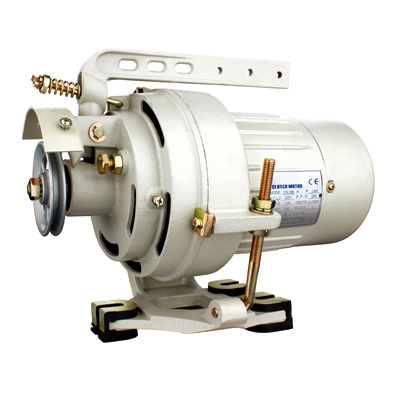

The structure and performance of the motor is optimized designed. The appearance is strictly according to the newest style in the world，The motor strictly implement JB/T3698(JB/T3699) machinery industry standards and the national safety standards GB12350. Our motor has several advantages such as rational construction, neoteric style, reliable work, easy to maintain etc, and is superior to other congeneric (low temperature-rising, low noise, low shake and so on) products
Environmental Condition
Ａ.he elevation should be no more than 4000m
Ｂ.Ambient temperature: ﹣１５℃～４５℃
Ｃ.The relative humidity can be９５±３％,while the temperature is２０±５℃
|
Model
|
Llcal model
|

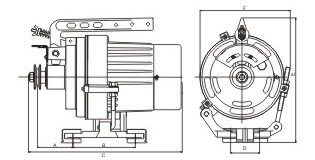

Dimension
|
|
|
|
A
|
B
|
C
|
D
|
E
|
F
|
|
DOL13H
|
Φ120
|
68
|
144
|
325
|
65
|
270
|
190
|
|
AOL12H
|
|
AOL13H
|
|
DOL14L
|
Φ120
|
38
|
144
|
326
|
65
|
270
|
190
|
|
DOL14LS
|
|
DOL16L
|
|
DOL16LS
|
Performance
|
Model
|
Voltage(V)
|
Frequency
|
Power(W)
|
Electrodes’no
|
Rotary speed
|
Capacitance
|
Local model
|
|
DOL13H
|
220
|
50Hz
|
250
|
2
|
2850
|
10UF500V
|
Ø120
|
|
AOL12H
|
380
|
50Hz
|
370
|
2
|
2850
|
-
|
Ø120
|
Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
