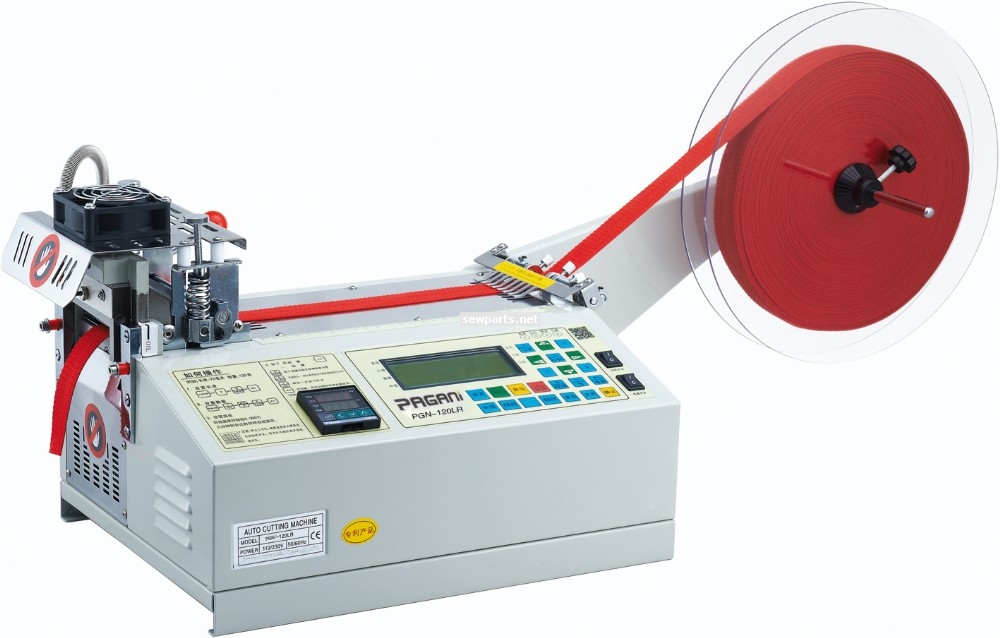

PGN-120LR Auto-belt Loop Cutter

US $ 1805.17 / Piece
Price:
Pieces
Quantity:
US $1805.17
Total Cost:

Buyer Protection

-Guaranteed refunds
-Escrow protection on every order
-Secure payments
  • Item Description

Description

  • Product Name: PGN-120LR Auto-belt Loop Cutter
  • Item Code:
  • Category:

    Automatic Cutting Machine

    To See this Categories
  • Brand:

    PAGANI

  • Product Area: China
  • Manufacturer:
  • Machine Model: PGN-120LR
  • Viewed: 174



SPECIFICATIONS
MODEL CUTTING LENGTH
mm
Max. CUTTING WIDTH
mm
CUTTING SPEED
p/min
WEIGHT
kg
VOLTAGE FREOUENCY
V/Hz
POWER
KW
Max. BLADE TEMP
°C
CUTTING ANGLE PACKAGE SIZE
(L.W.H)mm
LOADING RATE
PIC
PGN-120LR 1-99999 95 90 24/29 110V/220V
50/60
0.66 250 - 410×525×430 1


You can cut strip tapes automatically and neatly.

Special features:
High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate cwing to a stepping motor
Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

Apllication
belt loop, bag band, shrink tube, string, elastic band, plastic zipper, etc.]

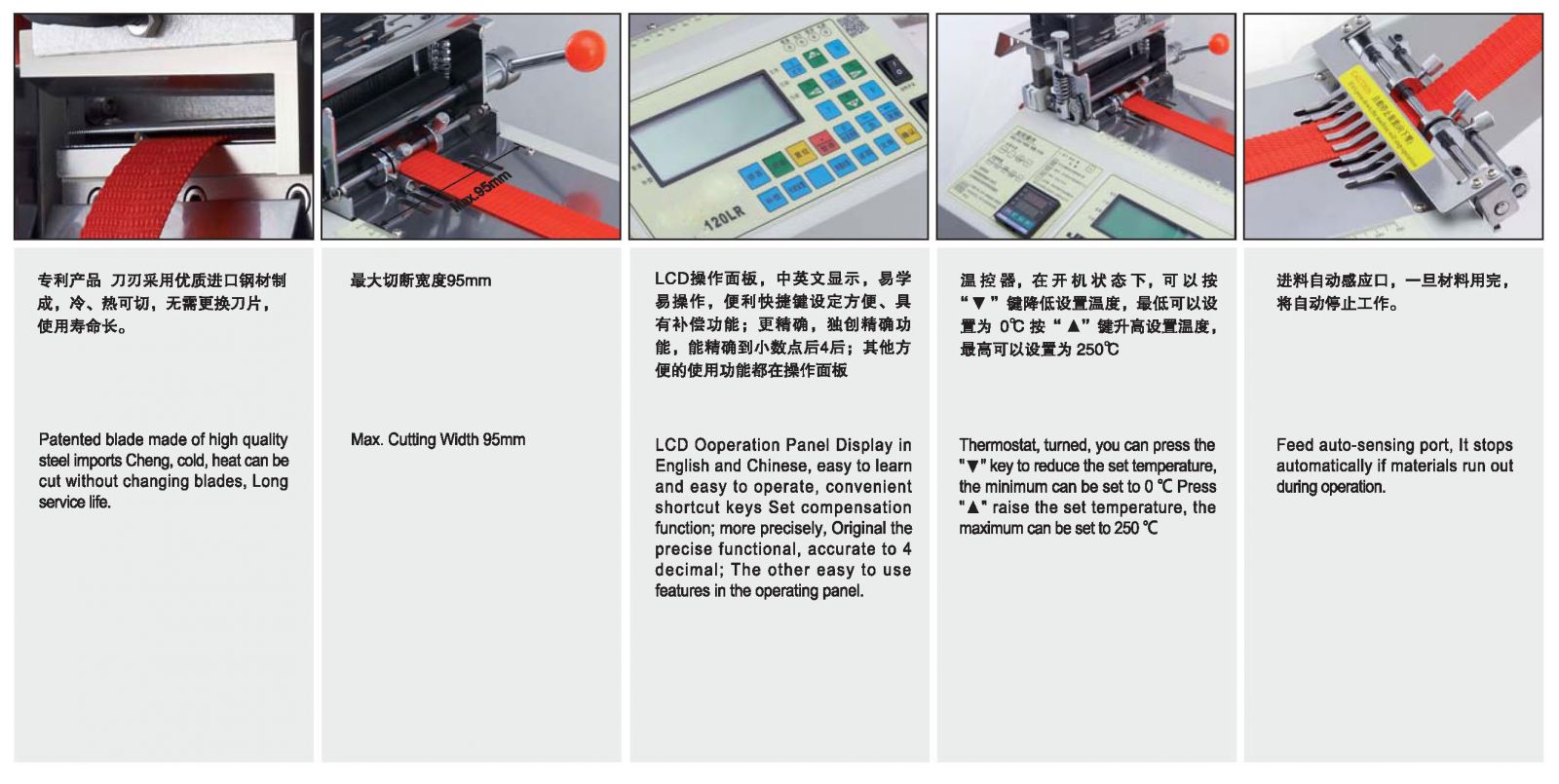

PRODUCT ILLUSTRATIONS







Next:Auto-velcro tape round cutter
Previous:Auto-tape cold cutter
Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
