PGN-210/ Automatic Spreading Machin

US $ 21982.76 / Piece

Price:

Pieces

Quantity:

US $21982.76

Total Cost:

Buyer Protection

-Guaranteed refunds

-Escrow protection on every order

-Secure payments

See larger image

Item Description

Description

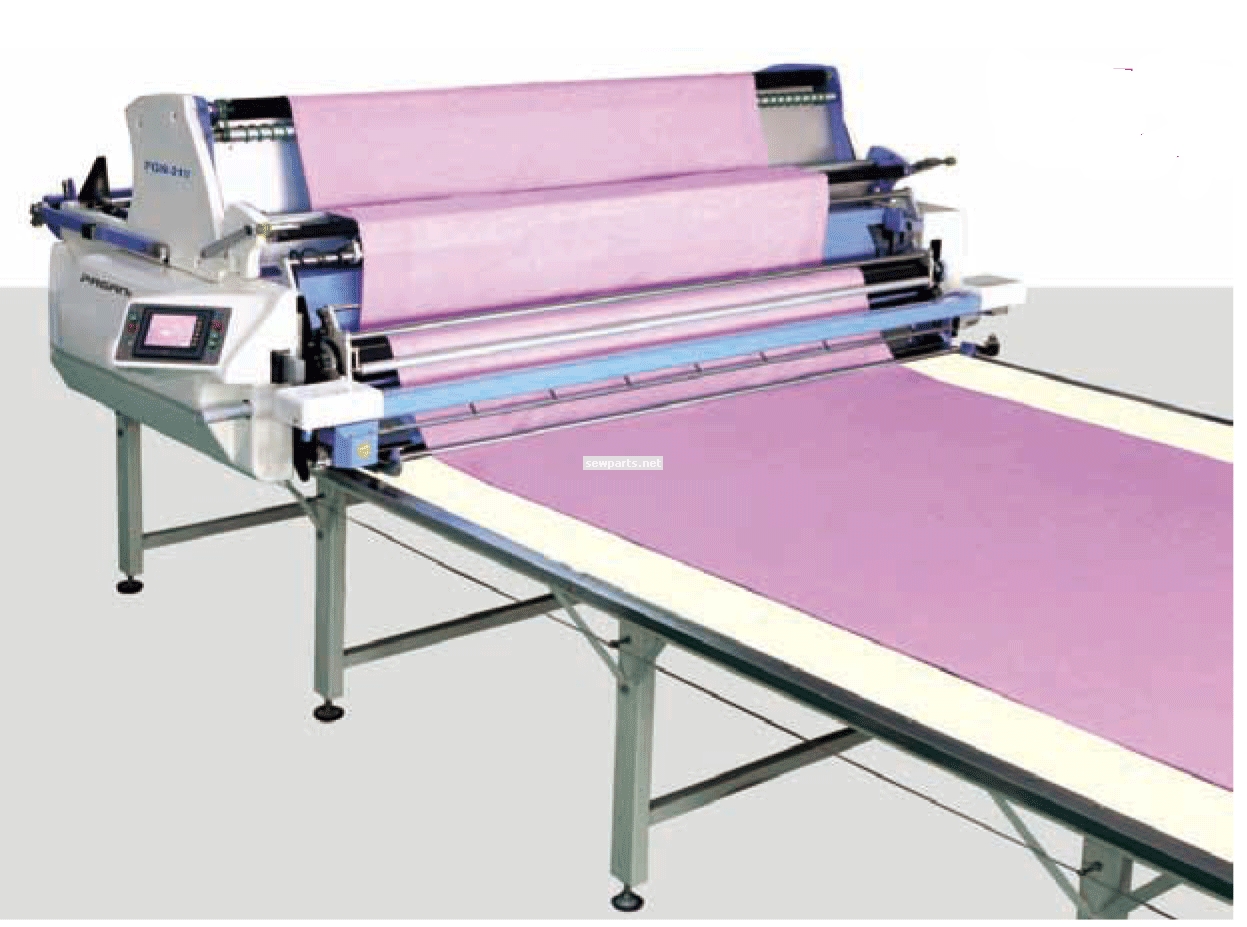

Product Name: PGN-210/ Automatic Spreading Machin
Item Code:
Category:
Automatic Spreading Machine
To See this Categories
Brand:
PAGANI
Product Area: China
Manufacturer:
Machine Model: PGN-210
Viewed: 190

The best spreading machine for knit and woven

FEATURE:♦Machine returns back to orginal position once fabric runs empty.
♦The machine power will automatically shut off upon 5minutes idle.
♦The spread laid fabric is not pulled when the emergency stop triggers.
♦The streamline shape can reduce the wind disturbance,noise and vibration.
♦Automatic fabric expanding system.
♦PLCTouch Panel,use-friendly operation system.
♦Non-tension spreading..
♦Simple operation increasea production efficiently and also ensures the best quality.

MAIN FUNCTIONS:
♦Touch panel sisplay:Easy to set up the length;number of layer;speed and steps.

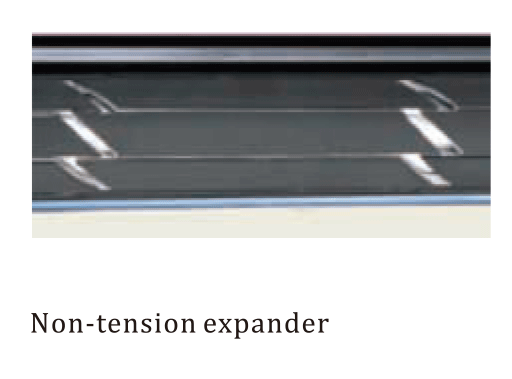

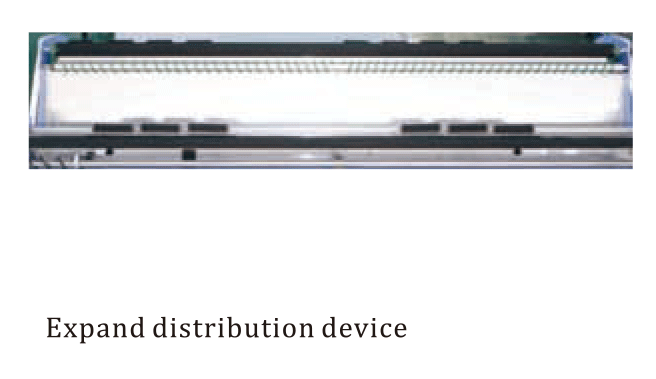

♦Fabric expanding device：It can be adjusted according to the different width and tension of fabrics,making fabrics free from tension.
♦Cutting device:The auto-cutter can be easily dismounted.
♦Travel length and speed of cutter are adjustable.
♦Catcher:Can work for both one way and face to face.
♦Automatic fabric relaxing control:To relax the fabric in advance and release the tension during spreading the fabric.
♦Edge control device:Automatic edge control during spreading the fabric.
♦Fabric loading sensor:Machine returns back to original position once fabric runs empty.
♦Automatic lifting device:It is automatic lifting according to the layer of cloth during spreading the fabric.The lifting gauge can be adjusted.
♦Emergency stop；The brake lines are under two sides of table,it can be efficiently pulled upon emergency.

STANDERD EQUIPMENT:
♦Set up of spreading length momery.
♦Auto acceleration and deceleration by computer.
♦Bucket type servo unwinding synchronically.
♦Fabric setting bar and fabric expander.
♦Emergency stop.
♦Auto-lifting device.
♦Adjustable cutter travel length.
♦Layer counter.
♦Edge control.
♦Auto-cutter.
♦Rewing device(Cloth roll),Catcher for double way.

OPTIONAL EQUIPMENT：

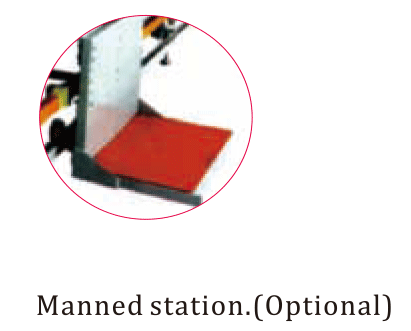

♦Manned station.
♦One side movable of catcher set.
♦Bloeing device enables the automatic fabric laying curling(as the case may be criping cloth).

Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
