Item Description

Description

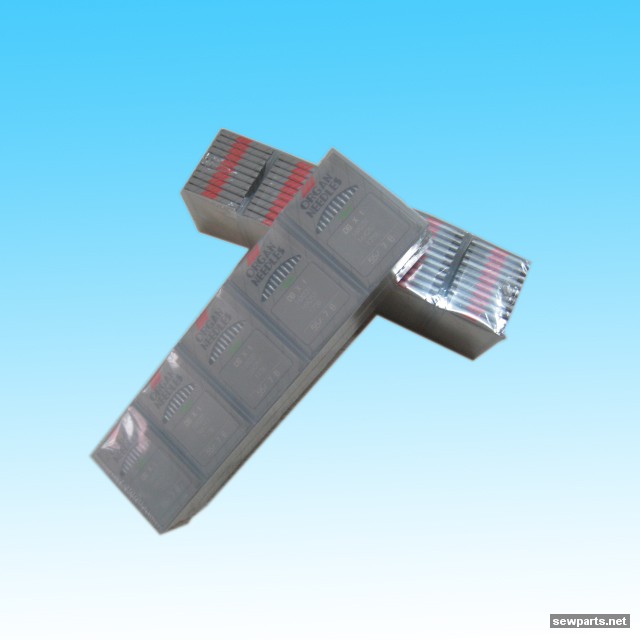

Product Name: ORGAN NEEDLES
Item Code: organ needle
Category:
NEEDLES
To See this Categories
Brand:
ORGAN-NEEDLE
Product Area: JAPAN
Manufacturer: ORGAN NEEDLE
Machine Model:
Viewed: 262

Dimensional symbols and description of sewing machine needle sections

Description of main processing operations and their characteristics

Symbol	Description	Characteristics
S	Slimly tapered (one size thinner) from eye to tip and with the tip shape of J-ball.	Slimly tapered (one size thinner) from eye to tip and with the tip shape of J-ball.
J	J ball point	Light ball point:1/10 in thickness of blade.
B	B ball point	Medium ball point:1/5 in. thickness of blade.
U	U ball point	Large ball point:1/3 in. thickness of blade.
Y	Y ball point	Extra large ball piont:1/2 in. thickness of blade.
SU	"Super treatment" for synthetic fibers	Needle heat-up preventive radiation-enhanced surface treatment
ASU	"Super treatment" for synthetic fibers	Needle heat-up preventive smooth and heat-up suppressive surface treatment
PSU	"Super treatment" for synthetic fibers	Needle heat-up preventive smooth and heat-up suppressive surface treatment
PD	Titan coating	PD: Wear resistance-enhanced gold-colored Titan Nitride coating.

Exemplary products and their characteristics

Symbol	Description	Yarn count
Lock stitch	DBx1	7 8 9 10 11 12 13 14 16 18 19 20 21 22 22*1/2 23 24 25
	DBx1KN	8 9 10 11 12 13
	DBx1SF	9 10 11
	DBx1NS	9 10 11 12 14
	DBx1738	8 9 10 11 12 13 14 16 18 19 20 21 22 23 24
	DBx1-NY2	9 10 11 12 14 16 18 19 20 21 22 23
	DBxK5	8 9 10 11 12 13 14 16 18 19
	DB-K23	9 10 11 12
	DBxA20	19 20 21 22 23
	DB-N20	11 14 16
	DAx1	7 8 9 10 11 12 13 14 16 18 19 20 21 22
	DAx1KN	8 9 10 11
Button sewing	BQx1	8 9 10 11 12 13 14 16 18 19 20 21 22 23
	TQx1	9 10 11 12 13 14 16 18 19 20 21 22
	TQx3	11 12 14 16 18 19 20 21 22
	TQx7	9 10 11 12 13 14 16 18 19 20 21 22 23 24
	TQx9	9 10 11 12 14 16 18 19 20 21 22
	DPN-2000A	38 49
Button holing	DPx5	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 22*1/2 23 24 25
	DPx5KN	8 9 10 11 12
	DPx5SF	9 10 11
	DPx5NS	9 10 11 12 14
	DPx134	7 8 9 10 11 12 14 16 18 19 20 21 22 23
	DPx134-NY2	9 10 11 12 14 16 18 19 20 21 22 23
	DPx35	8 9 10 11 12 13 14 16 18 19 20 21 22 22*1/2 23 24 25
	DOx5	11 12 14 16 17 18 19 20 21 22
	DOx558	10 11 12 13 14 16 18 19 20 21 22
	EBx755	8 9 10 12 14 16 18 19 20 21 23
	PFx797	10 11 12 13 14 16 18 19 20 21 22
	LQx5	7 8 9 10 11 12 13 14 16 18 19 20 21 22 23 24
	LQx5KN	12
Zigzag stitch	DPx5	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 22*1/2 23 24 25
	DPx5KN	8 9 10 11 12
	DPx134	7 8 9 10 11 12 14 16 18 19 20 21 22 23
	SGx1906	8 9 10 11 12 13 14 16 18 19 20 21
	SGx1963	8 9 10 11 12
	SGx1965	9 10 11 12 14
	DPx265	10 11 12 14 16 18 19
	DP-H26	10
	DPx7	8 9 10 11 12 14 16 18 19 20 21 22 22*1/2 23 24 25
	DPx438	8 9 10 11 12 14 16 18 19
Cross-stitching 1-2-3 needles Double chainstitch	DVx1	7 8 9 10 11 12 13 14 16 18 19 20 21 22 23 24 25
	DVxG9	8 9 11 12 13 14
	DVx43	9 11 12 13 14 16 18
	DVx63	7 8 9 10 11 12 13 14 16 18 19 20 21 22 23
	UYx128GAS	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 221/2 23 231/2
	UYx128GASKN	8 9 10 11 12
	UYx128GAS-NY2	8 9 10 11 12 14 16 18 19 20 21 22 23
	DVx57	9 10 11 12 13 14 16 18 19 20 21 22 22*1/2 23 24 25
	TVx1	7 8 9 10 11 12 13 14 16 18 19 20 21 22 23
	TVx3	19 20 21 22 23 24
	TVx5	8 9 10 11 12 13 14 16 18 19 20 21 22 23 24 25
	TVx7	8 9 10 11 12 13 14 16 18 19 20 21 22 23 24 25
	TVx64	8 10 11 12 13 14 16 18 19 20 21 22 23 25
Flat Seamer 1-2-3 needles Double chainstitch	FLx118A	8 9 10 11 12 13 14 16 18
	FLx118B	8 9 10 11 12 13 14 16 18
	FLx118GBS	9 10 11 12 13 14 16 18
	FLx118GCS	8 9 10 11 12
	FLx118GCSSF	9 10 11
	FLx1014A	9 10 11
	FLx1014B	9 10 11
	DV-K28	8 9 10 11 12
	DV-]K39	11 14 16 18 19
	UOx113GS	8 9 10 11 12 13 14 16 18 19 20 21 22 23
Overlock	DCx1	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 23 24 25
	DCx1KN	8 9 10 11 12 14
	DCX1SF	9 10 11
	DC-K32	10
	DC-N17	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22
	DC-N24	11 14
	DC-N25	7 8 9 10 11
	DC-N25SF	9
	DCx27	5 6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 23 24
	DMx1	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22
	DMx13	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22 23 24
	DMx13KN	9 10 11
	DCx3	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22
	DCx3KN	9 10 11
	DCx7	8 9 10 11
Curved needle Overlock	UNx154	7 8 9 10 11 12 13 14 16 18 21
	UNx]R12	9 11 14
	UOx154	6 7 8 9 10 11 12 13 14 16 18 19 20 22
	UYx154GAS	6 7 8 9 10 11 12 13 14 16 18 19 20 21 22
	UYx154GCS	9 10 11 12 14 16
	UNx]R7	9 11 14
Blind stitch	LWx1T	8 9 10 11 12 14 16 18 19 21
	LWx2T	8 9 10 11 12 14 16 18 19 21
	LWx3T	8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2 2*1/2 3 4
	LWx4T	8 9 10 11 12 14 16 18 19 21
	LWx6T	11/2 2 21/2 3 31/2 4 4*1/2 5
	LWx7T	11 12 14 16 18
	LWxC5	9 10 11 12 14 16 18 19 21
	LWx1669E	8 9 10 11 12 13 14 16 18 19 21

FROM:http://organ-needles.com/

Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
