Item Description

Description

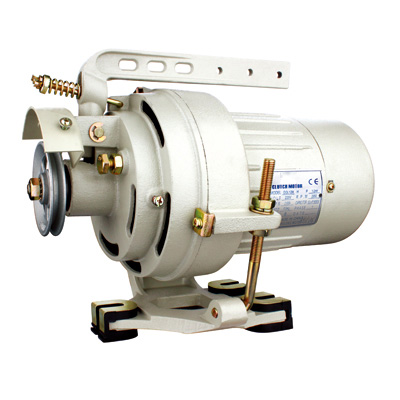

Product Name: Single/Three Phase Clutch Motor
Item Code: DOL34H/DOL34L
Category:
CLUTCH MOTOR
To See this Categories
Brand:
PAGANI
Product Area:
Manufacturer:
Machine Model: DOL34H/DOL34L
Viewed: 551

The structure and performance of the motor is optimized designed. The appearance is strictly according to the newest style in the world，The motor strictly implement JB/T3698(JB/T3699) machinery industry standards and the national safety standards GB12350. Our motor has several advantages such as rational construction, neoteric style, reliable work, easy to maintain etc, and is superior to other congeneric (low temperature-rising, low noise, low shake and so on) products

Environmental Condition

Ａ.he elevation should be no more than 4000m

Ｂ.Ambient temperature: ﹣１５℃～４５℃

Ｃ.The relative humidity can be９５±３％,while the temperature is２０±５℃

Model	Llcal model	Dimension						Model	Llcal model	Dimension
		A	B	C	D	E	F			A	B	C	D	E	F
DOL34H	Φ135	80	142	366	65	285	205	DOL34L	Φ135	80	142	366	65	285	205
DOL34HS								DOL34LS
DOL12H	Φ135	80	142	351	65	285	205	DOL12L	Φ135	80	142	351	65	285	205
DOL12HS								DOL12LS
AOL34H(S)								DOL13L
DOL34H	Φ135	80	142	351	65	285	205	DOL13LS
DOL34HS								AOL34L
DOL12H								AOL34LS
DOL12HS								AOL12L
AOL34H								AOL12LS
AOL34HS
DOL12H	Φ135	80	142	345	65	285	205
DOL12HS
DOL13H
DOL13HS
AOL12H(S)
AOL13H(S)

Performance

Model	Voltage(V)	Frequency	Power(W)	Electrodes’no	Rotary speed	Capacitance	Local model
DOL13H	220	50Hz	250	2	2850	10UF500V	Ø135
DOL13HS	110/220	60Hz	250	2	3450	16UF250V	Ø135
DOL12H	220	50Hz	400	2	2850	10UF500V	Ø135
DOL12HS	110/220	60Hz	400	2	3450	20UF250V	Ø135
DOL12H	240	50Hz	400	2	2850	10UF600V	Ø135
DOL34H	220	50Hz	550	2	2850	16UF500V	Ø135
DOL34H	240	50Hz	550	2	2850	16UF450V	Ø135
DOL34HS	110/220	60Hz	550	2	3450	30UF250V	Ø135
DOL13L	220	50Hz	250	4	1425	10UF500V	Ø135
DOL13LS	110/220	60Hz	250	4	1725	16UF250V	Ø135
DOL13LS	127	60Hz	250	4	1725	16UF250V	Ø135
DOL12L	220	50Hz	400	4	1425	12UF500V	Ø135
DOL12LS	127	60Hz	400	4	1725	20UF250V	Ø135
DOL12LS	110/220	60Hz	400	4	1725	20UF250V	Ø135
DOL34L	220	50Hz	550	4	1425	16UF500V	Ø135
DOL34LS	110/220	60Hz	550	4	1725	30UF250V	Ø135
AOL13H	380	50Hz	250	2	2850	-	Ø135
AOL12H	380	50Hz	370	2	2850	-	Ø135
AOL34H	380	50Hz	550	2	2850	-	Ø135
AOL1H	380	50Hz	750	2	2850	-	Ø135
AOL13L	380	50Hz	250	4	1425	-	Ø135
AOL12L	380	50Hz	370	4	1425	-	Ø135
AOL34L	380	50Hz	550	4	1425	-	Ø135

Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
