Specifications
| Model |
Cutting
Length
mm |
Cutting
Speed
p/min |
Max.Cutting
Width
mm |
Max.Cutting
Angle
mm |
Sound
Frequency
Hz |
Recommended
Pressure
Mpa |
Voltage
V |
Power
kw |
Power
kw |
Weight
kg |
Stand
Package Size
L.W.H(mm) |

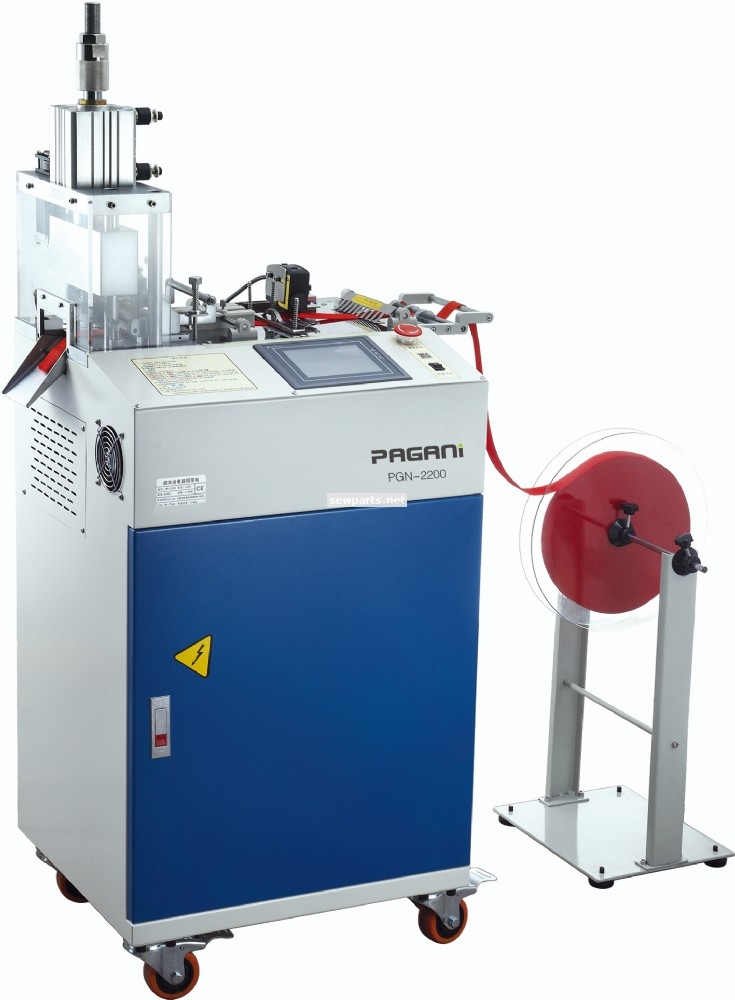

| PGN-2200 |
25-99999 |
120 |
100 |
35 |
20K |
0.4-0.7 |
220 |
1.5 |
1.7 |
152 |
700x610x1450 |
Product Detail
Ultrasonic cutting, large touch sreen, sharing flateform. Varity shapes.
Special features:
Ultrasonic cutting: Balde is not black, ghost edge and feel comortable. The powerful transducer cut faster, quiter.
Accurate: The accurate cut of lables by using optronics sensor.
Varity shapes: The special technique of sharing flateform can carry variety shapes of knife molds and replace mold quickly.
Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.
Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memery all cuttings for your convenience.
Apllication

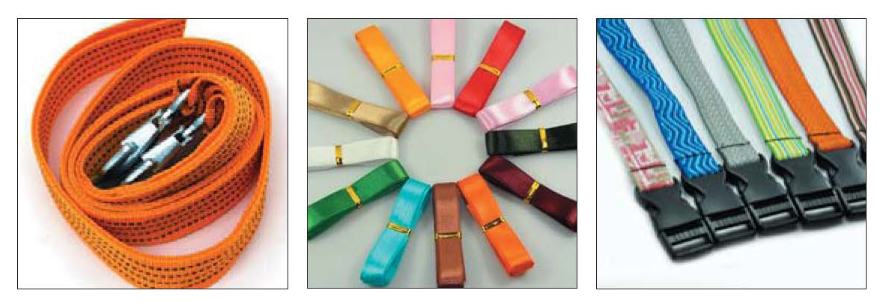

Suitable for Wovean Belts, Velcro, Shoelace, Zipper, Labels, And Kinds of Leather Belts. etc.
Product Illustrations
 |
 |
 |
 |
 |
Blade made of high
quality steel imports,
Long life; Unique
anti-static devices;
Multi cutter platform. |

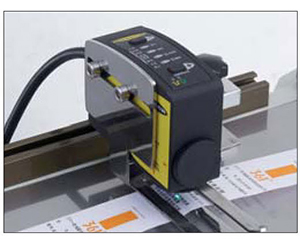

The photoelectric
sensor can accurat-
ely capture the
trademark cutting
line, thus the preci-
se control of each of
the effective cutting
length. |
LCD Operation Panel
Display in English
and Chinese, easy
to learn and easy to
operate, convenient
short-cut keys Set
compensation func-
tion;more precisely,
Original the precise
functional, accurate
to 4 decimal; The
other easy to use
features in the
operating panel. |
Equipped with electric
shock devices, when
the user opens the
door, Will automatica-
lly cut off power to
ensure safety. |
Feed auto-sensing
port, It stops
automatically if
materials run out
during operation. |
Ultrasonic Cutting Machine (Multi Function)
|
