Specifications
| Model |
Cutting
Length
mm |
Cutting
Speed
p/min |
Max.Cutting
Width
mm |
Sound
Frequency
Hz |
Recommended
Pressure
Mpa |
Voltage
V |
Power
kw |
Power
kw |
Weight
kg |
Stand
Package Size
L.W.H(mm) |
| PGN-2100 |
15-99999 |
120 |
200 |
15K |
0.4-0.7 |
220 |
1.5 |
3.5 |
178 |
769x690x1380 |
Product Detail
Ultrasonic cutting, large touch sreen, easy operaiton.
Special features:
Ultrasonic Cutting: Balde is not black, ghost edge and feel comortable.
Effcient: The powerful transducer cut faster, quiter.
Touch screen: Large touch screen, the srceen display directly, easy operation.
Accurate: Cut-length is accurate owing to a stepping motor.
Cutting wide: Specail designe of workbench, cut with 200mm wide.
Computerised: Automatic work, stop. The special fault self-diagnosis, clear fualt zone.
Apllication
All kinds of Wovean Belts, Velcro, Shoelace, Zipper, Webbings, Safe Belts. And Kinds of Leather Belts. etc.
Product Illustrations
 |
 |
 |
 |

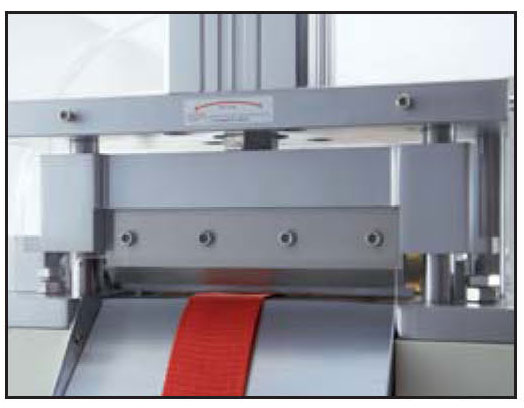

Blade made of high quality
steel imports. |

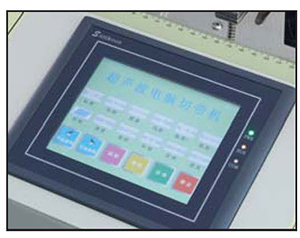

LCD Operation Panel
Display in English and
Chinese, easy to learn
and easy to operate,
convenient short-cut keys
Set compensation function;
more precisely, Original the
precise functional, accurate
to 4 decimal; The other
easy to use features in the
operating panel. |

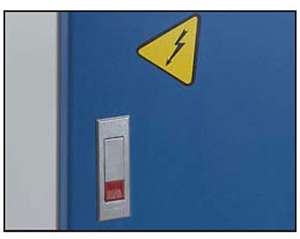

Equipped with electric
shock devices, when the
user opens the door, Will
automatically cut off
power to ensure safety. |

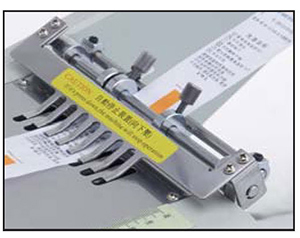

Feed auto-sensing port,
It stops automatically if
materials run out during
operation. |
Note: All product images and technical parameters of the station are for reference only, all with the physical products, if you have any questions, welcome to the customer service personnel detailed consultation.
