    PGN-120LR Auto-belt Loop Cutter

    Home >> Product list >> PGN-120LR Auto-belt Loop Cutter
    • Product part_No:

    • Product Pname:

      PGN-120LR Auto-belt Loop Cutter
    • Product brandName:

      PAGANI
    • Product p_area:

      China
    • Product manufacturer:

    • Product machine_model:

      PGN-120LR

    Product pdescription:



    SPECIFICATIONS
    MODEL CUTTING LENGTH
    mm
    Max. CUTTING WIDTH
    mm
    CUTTING SPEED
    p/min
    WEIGHT
    kg
    VOLTAGE FREOUENCY
    V/Hz
    POWER
    KW
    Max. BLADE TEMP
    °C
    CUTTING ANGLE PACKAGE SIZE
    (L.W.H)mm
    LOADING RATE
    PIC
    PGN-120LR 1-99999 95 90 24/29 110V/220V
    50/60
    0.66 250 - 410×525×430 1


    You can cut strip tapes automatically and neatly.

    Special features:
    High speed: It can cut 80~100 cut per minute. (50mm long)
    Accuracy: Cut-length is accurate cwing to a stepping motor
    Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
    Automatic operation: It works automatically only by setting length and quantity
    Automatic stopper: It stops automatically if materials run out during operation.
    Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.

    Apllication
    belt loop, bag band, shrink tube, string, elastic band, plastic zipper, etc.]

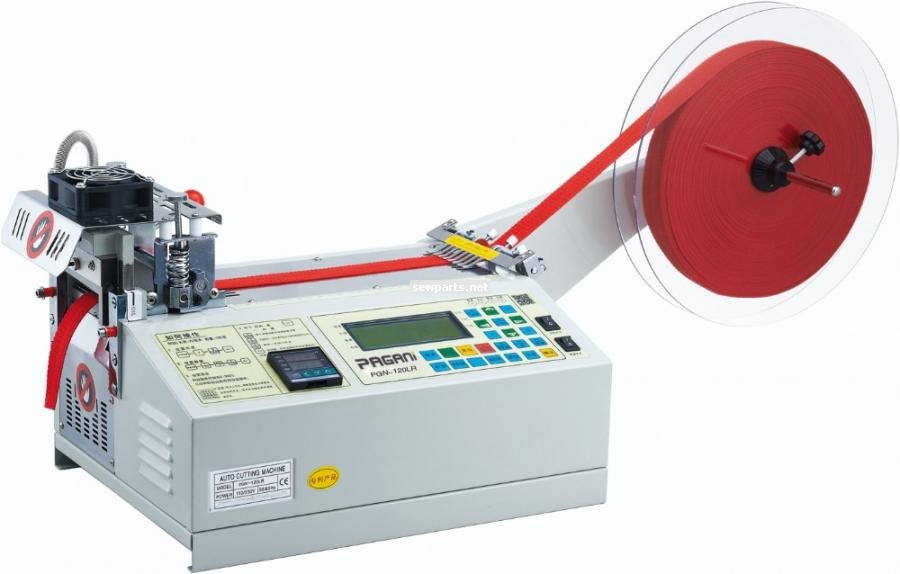

    PRODUCT ILLUSTRATIONS
