◆Function Characteristic

. The unique traction device ensures the high reliability and the fastness of sewing.



◆Usage

It is suitable for blind sewing of knit wear, cotton and chemical fibermaterials, especially for sewing diveng dress made of neoprene, water-resistant dress, and surfing dress.



◆Specifications

Stitch spec:One thread (PGN-1430),Double thread(PGN-2430) Chainstitch, Blindstitch

Speed:Max.2,000 s.p.m

Stitch length:3-8mm

Under-arm length:360mm

Skip stitch: No Skip(1:1)

Needle:LW x 6T(Organ Needle,#14,#16)

Motor:Clutch(200W, 4-poles) or ACServo-motor



◆Sub-Class

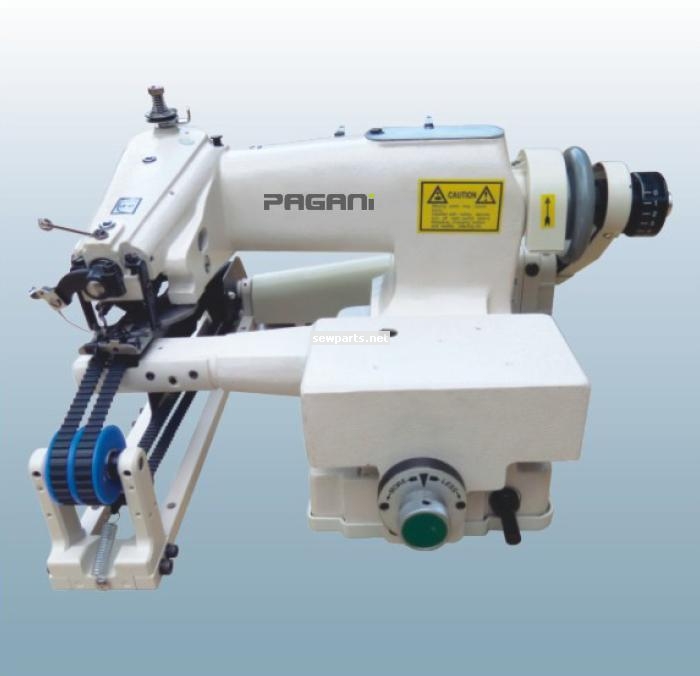

PGN-1430: With table top cloth puller device single thread chianstitch blindstitch machine

PGN-2430: With table top cloth puller device double thread chainstitch blindstitch machine
