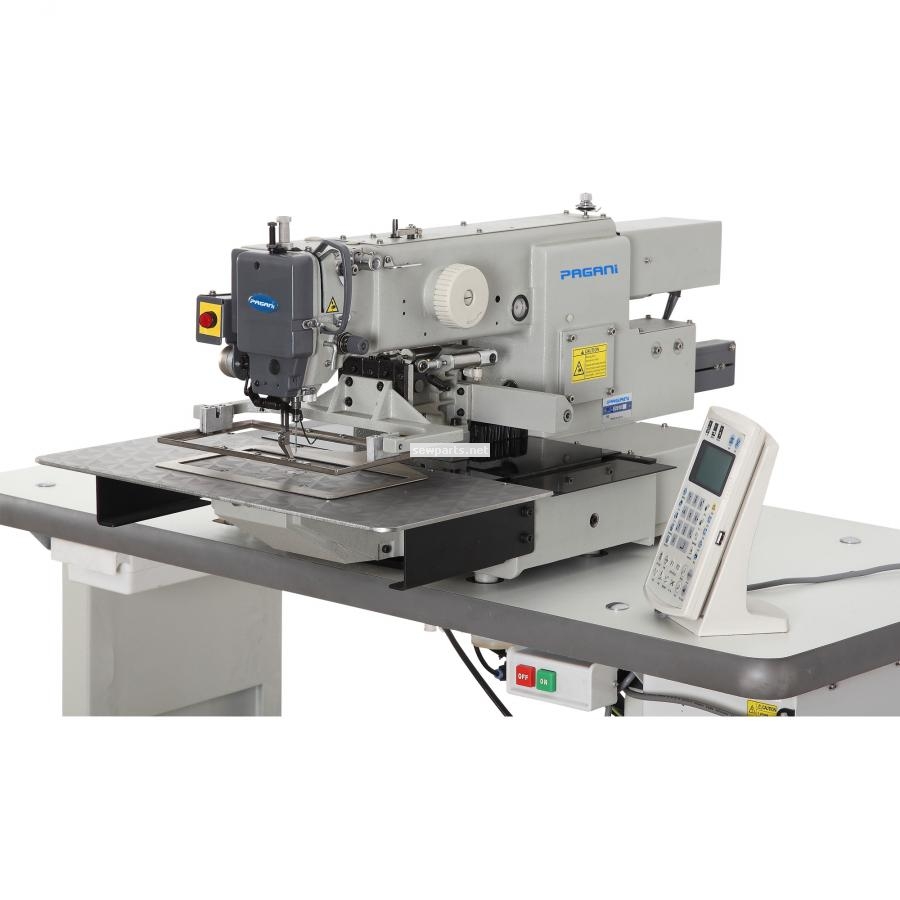

PGN-E2010R/Electronic Pattern Sewing Machine (Smarteer System)
Product pdescription:
Adopt big screen liquid crystal screen
Simple image, easy operation
Richer function
Features:
High Speed: Max. sewing speed 2,500 needles/min.
Easy Operation: Touch liquid crystal screen
High Performance: Simple program weaving function
Technical Parameters
Simple image, easy operation
Richer function
Features:
High Speed: Max. sewing speed 2,500 needles/min.
Easy Operation: Touch liquid crystal screen
High Performance: Simple program weaving function
Technical Parameters
| Model | PGN-E2010R |
| Stitch type | Single needle lockstitch |
| Sewing range | (X)200mm*(Y)100mm |
| Max. sewing speed | 2,000 needles/min. |
| Speed setting | 200-2,000 needles/min. |
| Feeding mode | Intermittent, continuous feeding (switchable) |
| Stitch length | 0.1-12.7mm(min. resolution 0.1mm) |
| Expansion, zoom out function | 10-200% for X axis and Y axis respectively (min. resolution 0.1%) |
| Max. needles | 8,000 needles/pattern |
| Needle | DP*17(#18) |
| Rotating shuttle | Semi-rotation double rotating shuttle |
| Work holder lift | 18mm |
| Stepping foot lift | 20mm |
| Stepping foot stroke | 4-10mm |
| Presser foot type | Air pressure type |
| Spindle motor | 500W direct drive return servo motor |
| Power supply | 200V single-phase/380V three-phase(±10%)/600VA |
| Weight | 156kg |
| Overall dimensions | 1,200mm(W)*1,100mm(D)*1,170mm(H) |
